(ABM-832C3) Машината за многофункционални етикети Auto Bender Machine Включи функции: Брута, огъване, мост, Ник, перфорация, дупка, изпускане, нарязване на плесени и плоско нарязване. Поддържана дебелина на стоманата с дебелина 0,45, височина 8-12 мм. Adewo е успешен за много местни и чуждестранни компании за изработка и печат на Die Die, за да предоставят модерни машини за автомобили, икономически ефективни, техническа поддръжка и отлични след продажби.

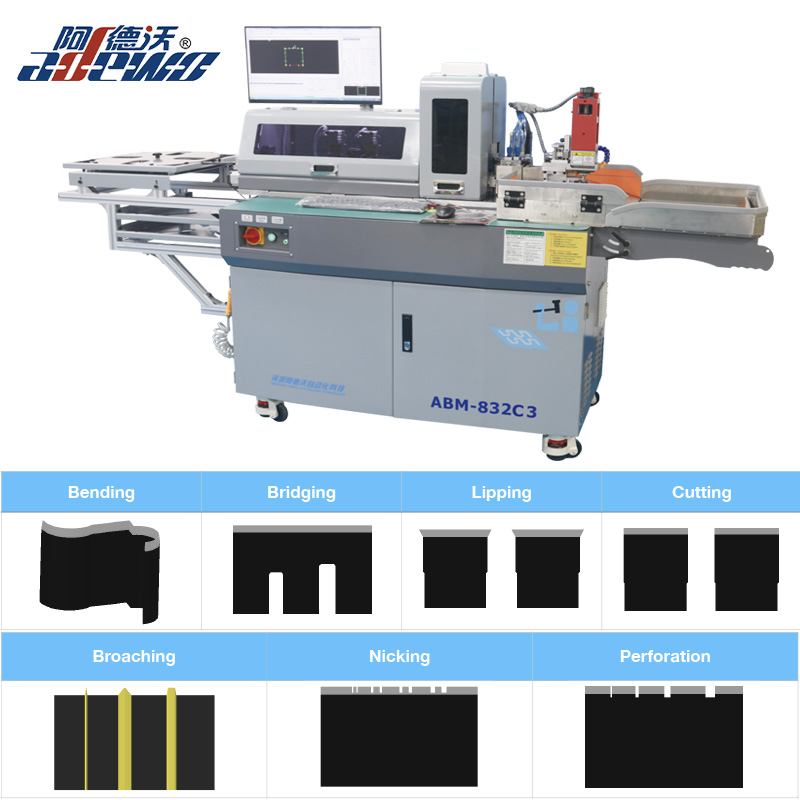

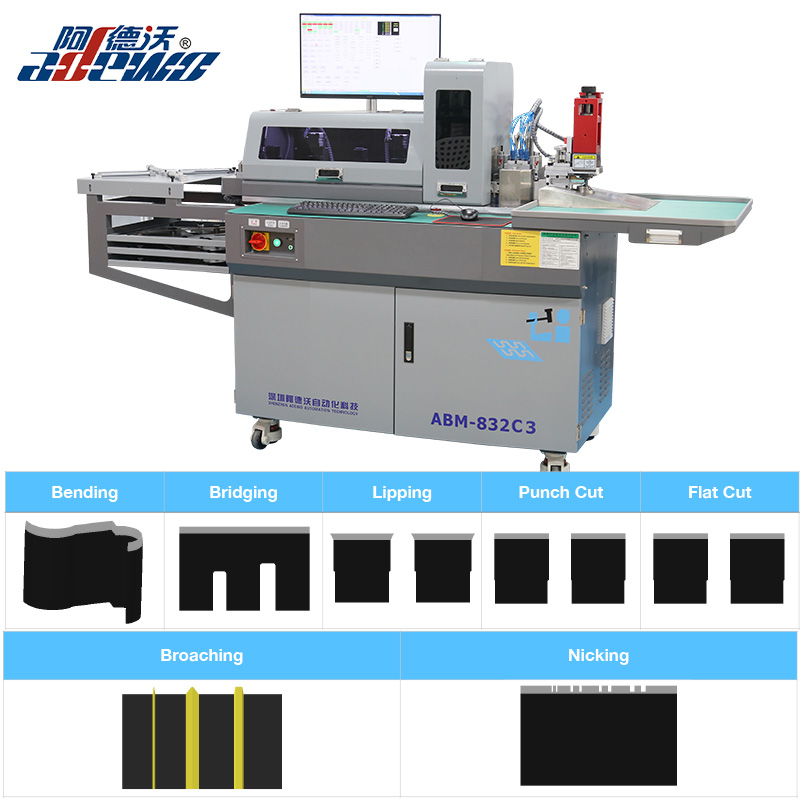

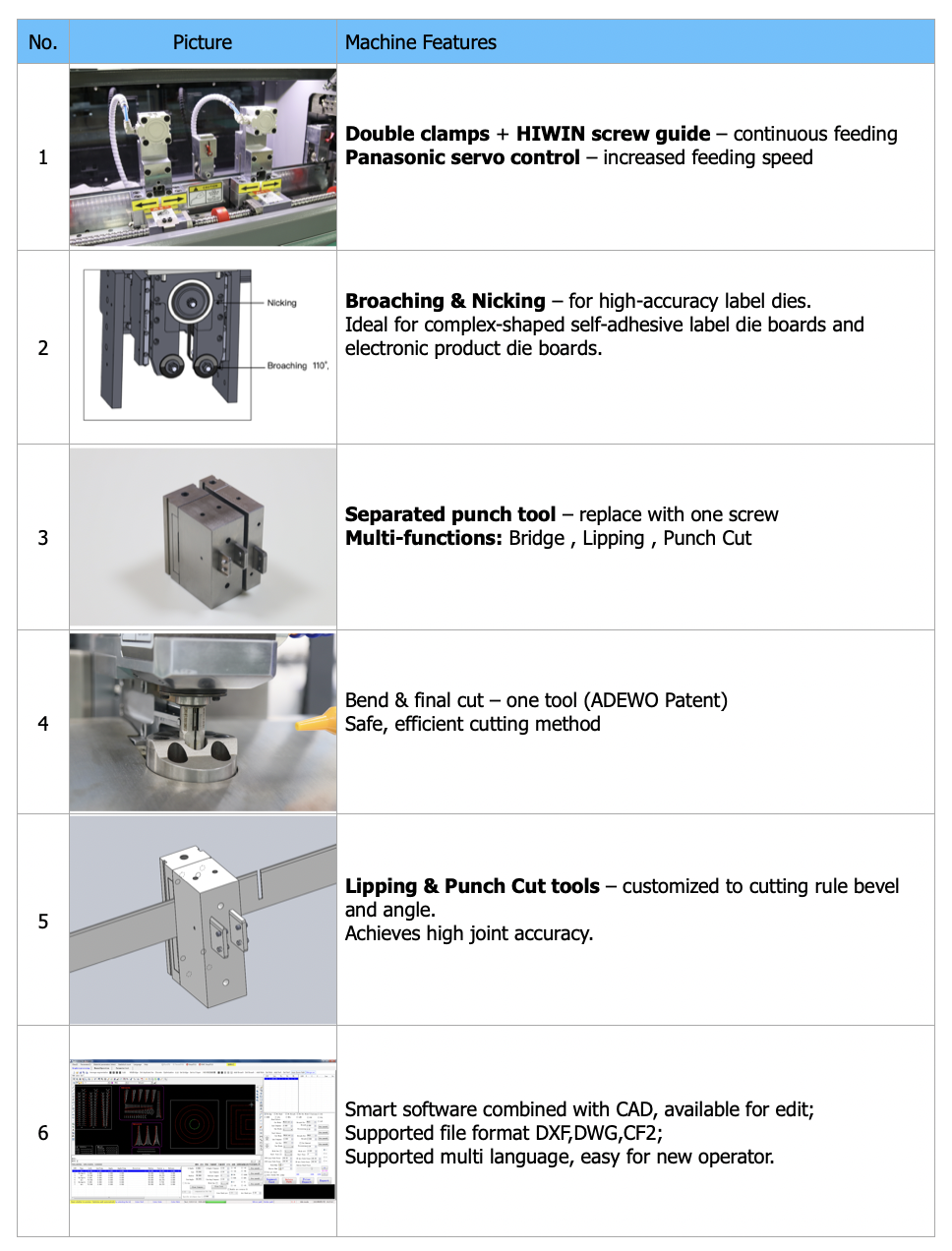

Picture of (ABM-832C3)Multi-Functions Label Rule Auto Bender Machine for reference:

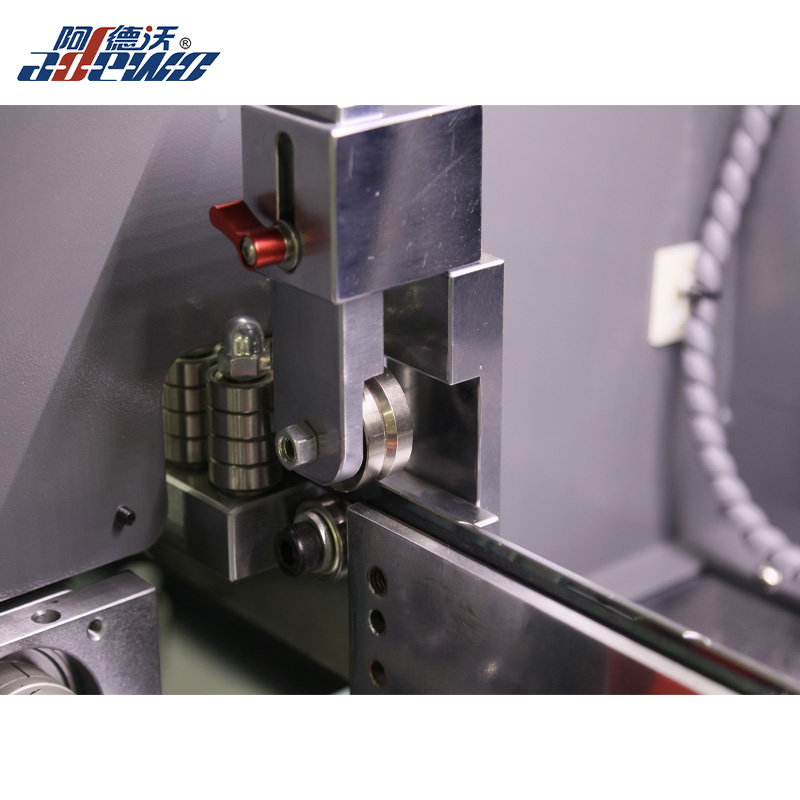

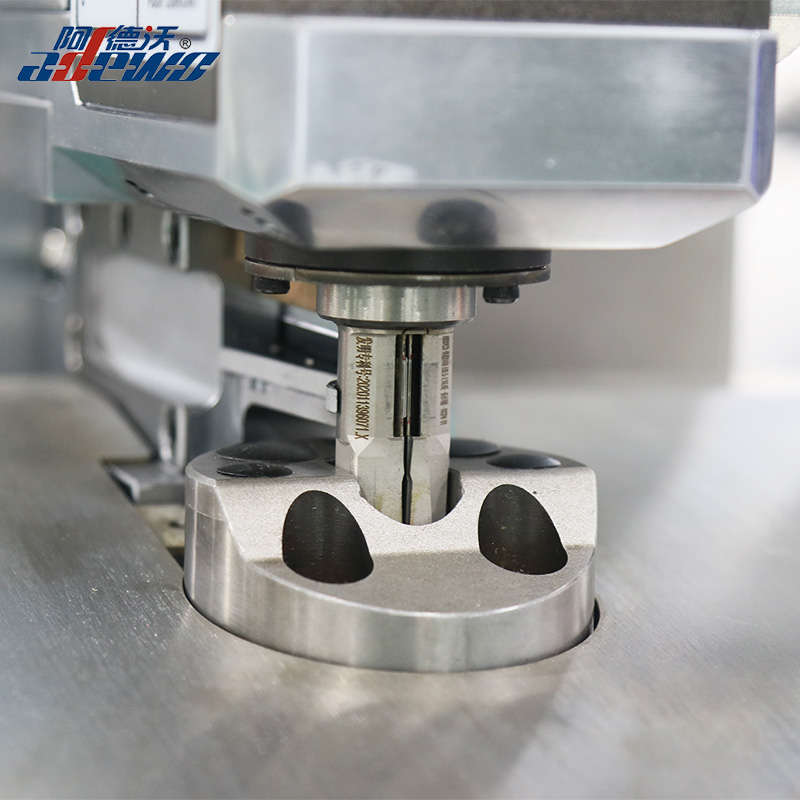

1. Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2. New design of final cutting,flatness adjustable of cutting rule, good cutting effect of flat cut.

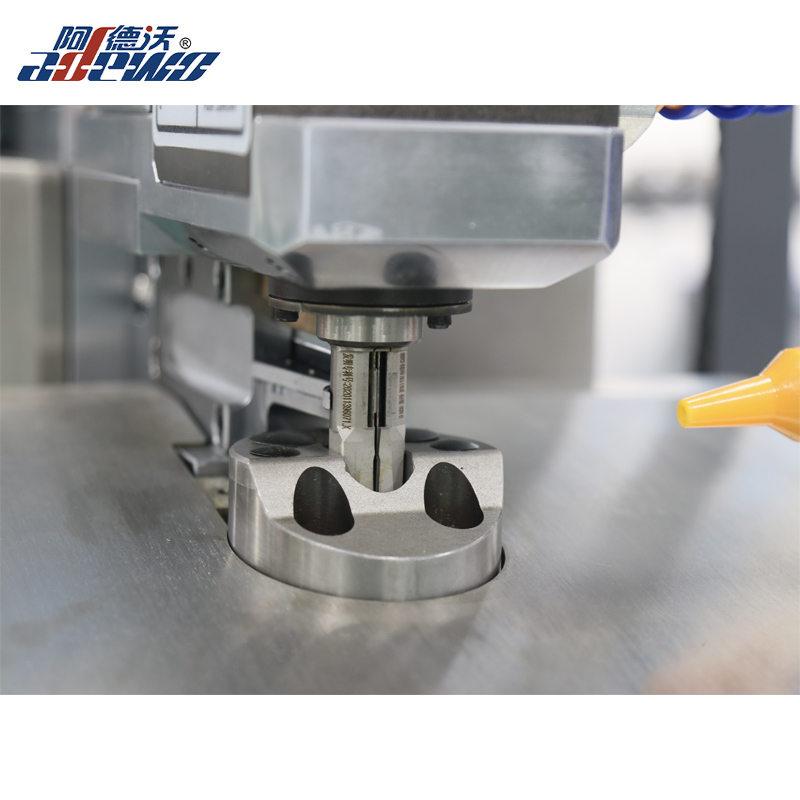

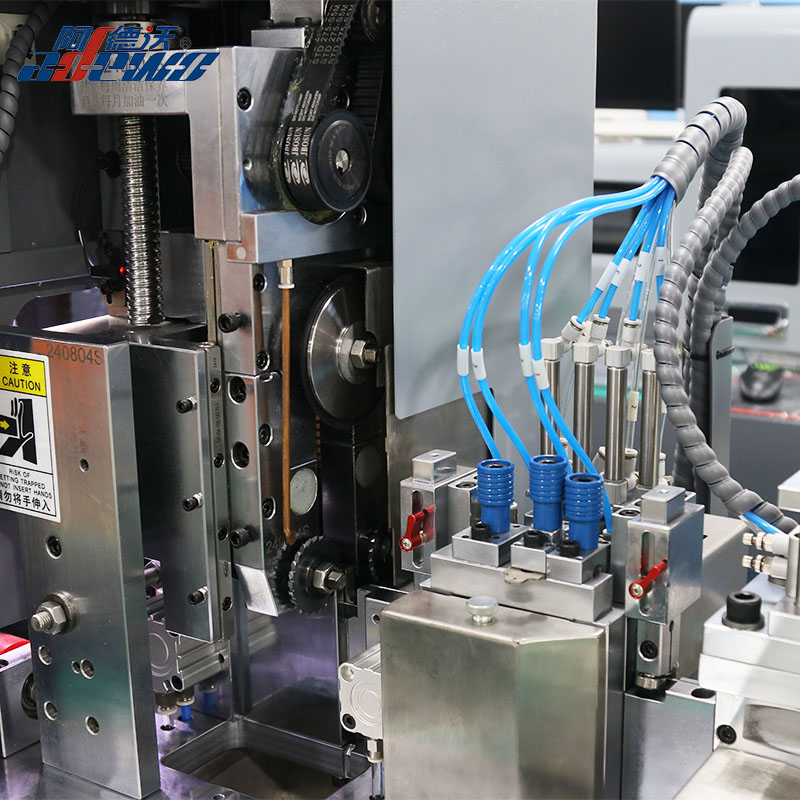

3. New structure of punch tool, easy to solve the problem of rule stuck.

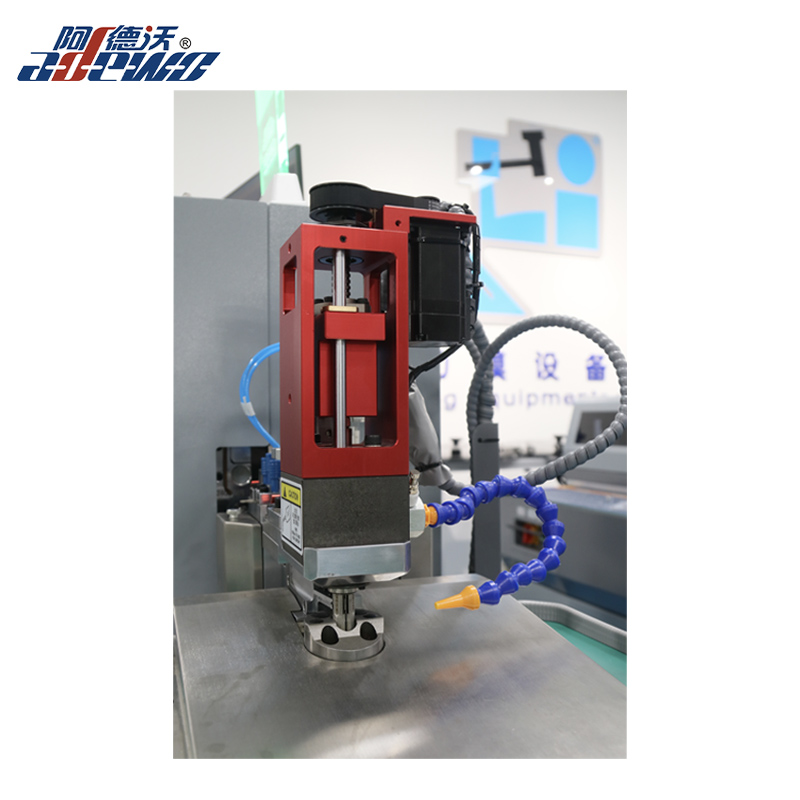

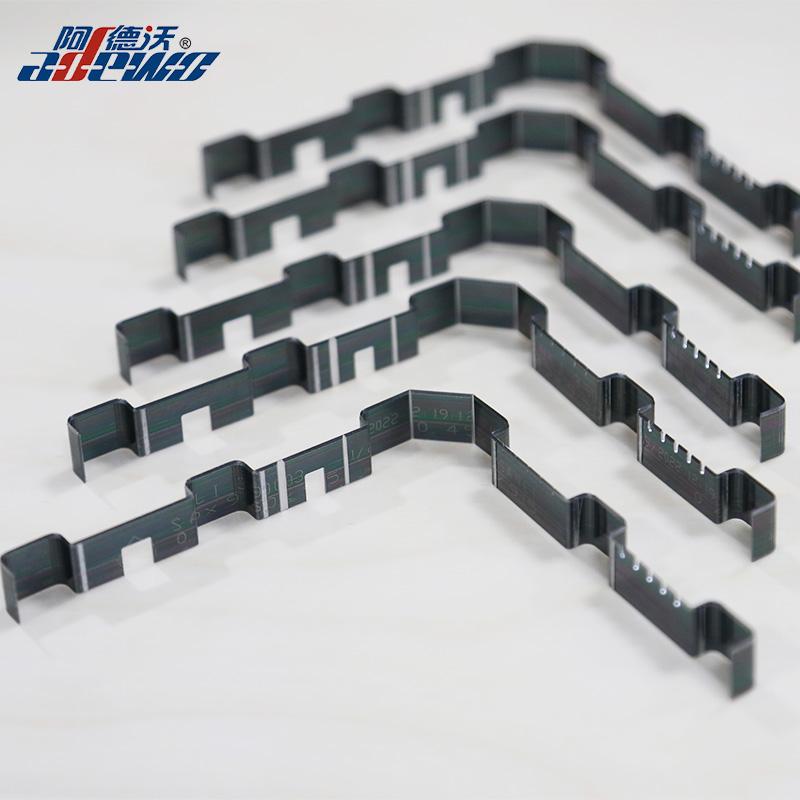

4. Multi-Punch tool:including Lipping,Mold Cut,Bridge,Hole or Perforation, independent tooleasy to replace.

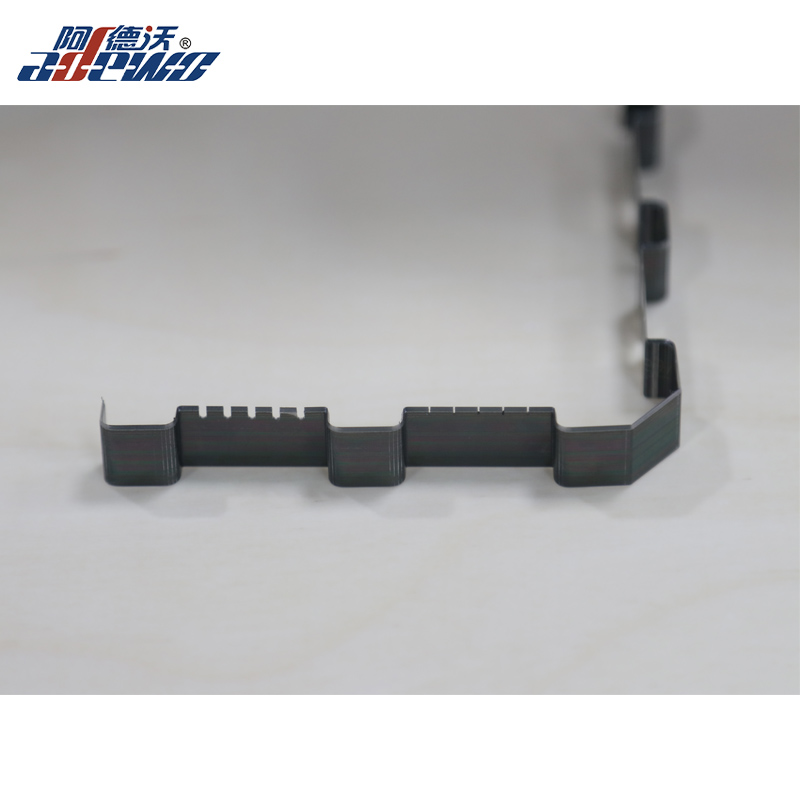

5. Multi-Broaching&Nicking for choice,wide and narrow broaching, suitable for high end diemaking.

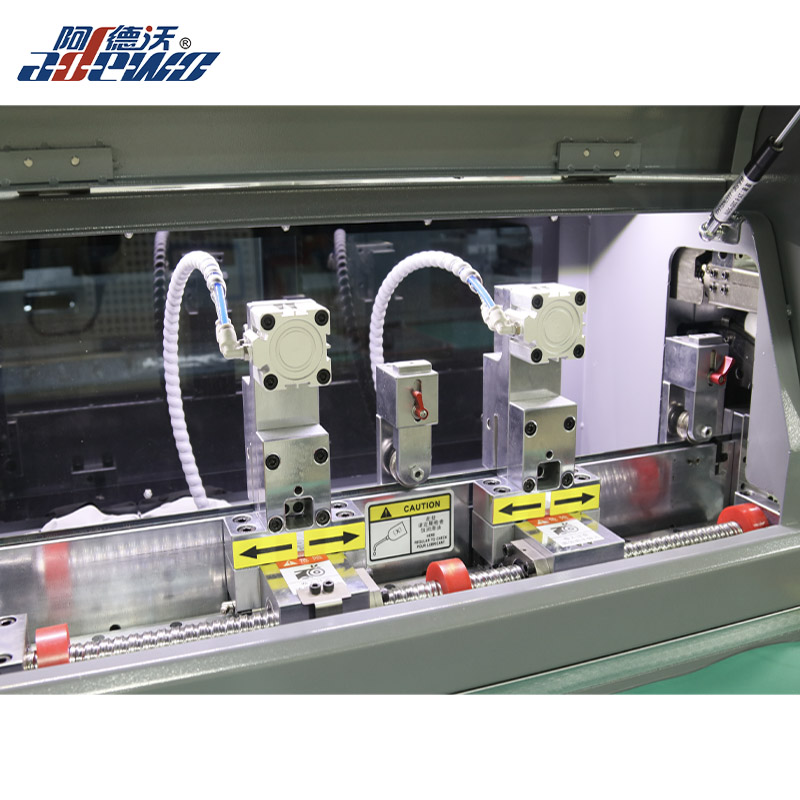

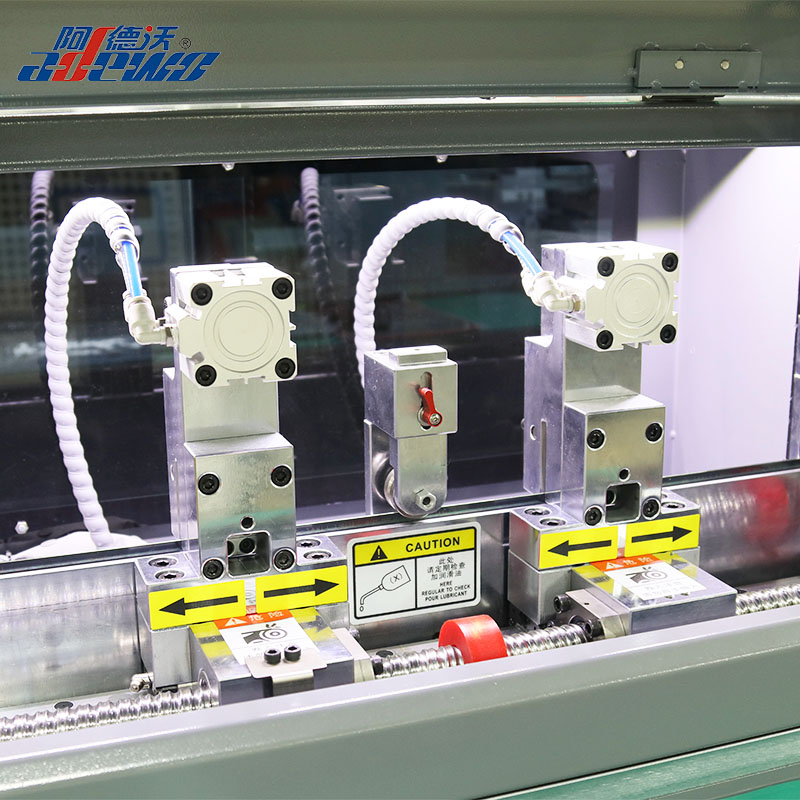

6. Double clamps,screw guide feeding continuously, improves work efficiency.
|
Supported rule thickness(mm) |
0.45mm(1pt) |
|
Supported rule height(mm) |
8-12mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. Bending Angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Functions |
Broaching,Bending,Bridge,Lipping,Cutting |
|
Optional function |
Broaching,Nicking,Perforation,Hole |
| Broaching |
Single set Broaching/Double set Broaching can be selected (110 degree and 150 degree) |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KG |
|
Overall dimension |
2700x800x1650mm(LxWxH) |
|
H.S. Code |
8462230000 |
